led area & site Retrofit solutions

APPLICATIONS

Ideal for high levels of utility rebate incentives required DLC Premium listing products, California PG&E QPL listed for rebate (http://www.caioulightingqpl.com/)

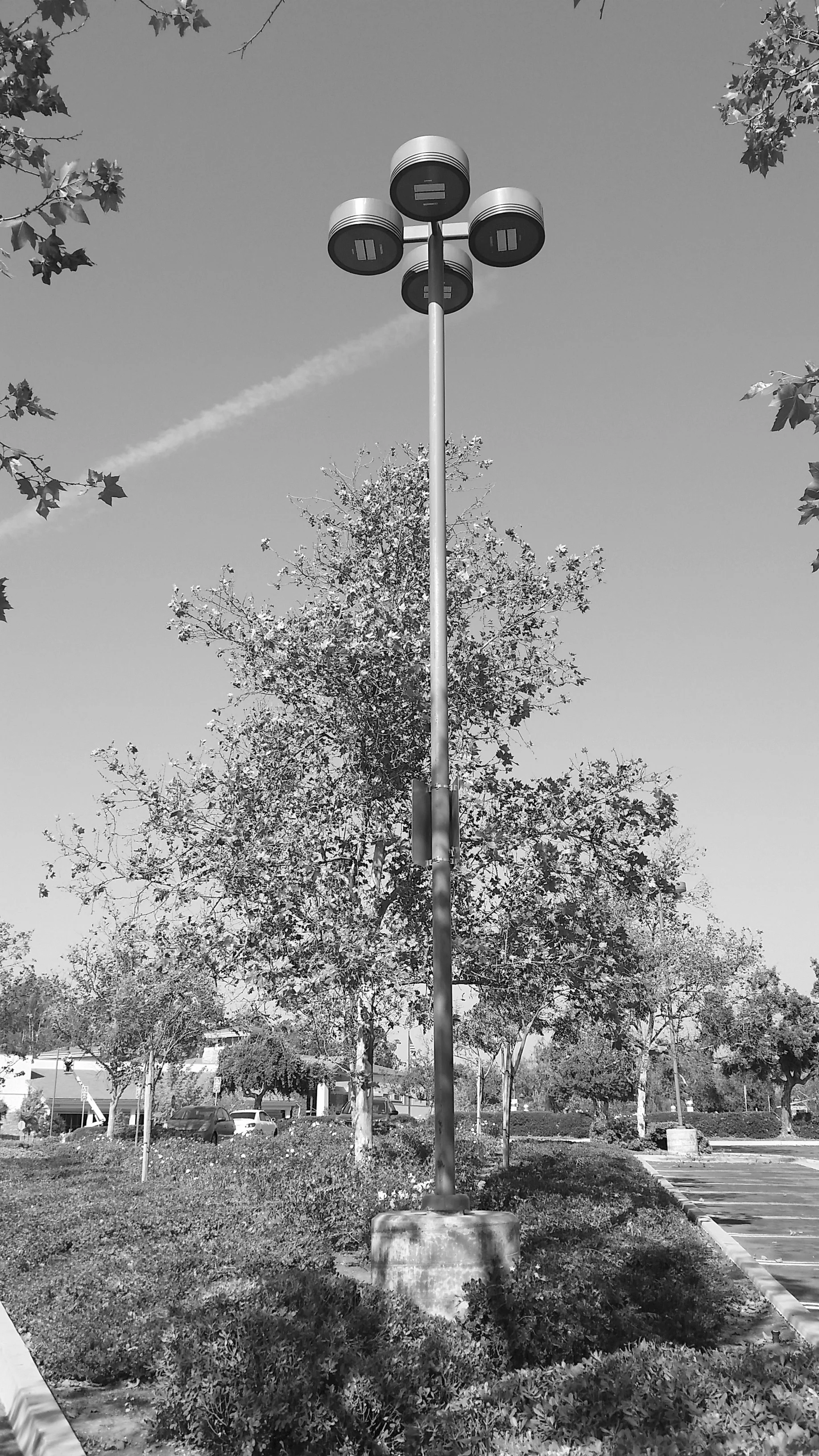

Parking lot and recreational area LED upgrades with the merger of Internet-of-Things (IoT) and lighting technologies – snap into existing fixtures without changing any existing architecture

CUSTOM ENGINEERED SOLUTIONS

Custom retrofit integrated with Smart Lighting technologies/Internet of Things:
- 0-10V dimming wireless network interface module
- 0-10V dimming with wireless remote control
- 0-10V automatic profile dimming modes
  - Traditional-timer
  - Self Adapt-Midnight timer
  - Self Adapt-Percentage timer
  - Photocell with motion response
  - Photocell with motion response override

STANDARD PART NUMBERS

 Retrofit Kits for Gardco Gullwing - Teslyte model RF-TLGG


       60 Watts
       RF-TLGG-U-3-60W-[30/40]-[GR/BZ]-D
       Univ. Voltage - T3 - [3000K or 4000K] CCT - Color [Gray or Bronze] - Dimmable


       80 Watts
       RF-TLGG-U-3-80W-[30/40]-[GR/BZ]-D
       Univ. Voltage - T3 - [3000K or 4000K] CCT - Color [Gray or Bronze] - Dimmable


       120 Watts
       RF-TLGG-U-3-120-[30/40]-[GR/BZ]-D
       Univ. Voltage - T3 - [3000K or 4000K] CCT - Color [Gray or Bronze] - Dimmable


       150 Watts
       RF-TLGG-U-3-150-[30/40]-[GR/BZ]-D
       Univ. Voltage - T3 - [3000K or 4000K] CCT - Color [Gray or Bronze] - Dimmable


 Retrofit Kits for Gardco Form 10 Shoebox and Circular - Teslyte model RF-TLGS


       60 Watts
       RF-TLGS-U-3-60W-[30/40]-[GR/BZ]-D
       Univ. Voltage - T3 - [3000K or 4000K] CCT - Color [Gray or Bronze] - Dimmable


       80 Watts
       RF-TLGS-U-3-80W-[30/40]-[GR/BZ]-D
       Univ. Voltage - T3 - [3000K or 4000K] CCT - Color [Gray or Bronze] - Dimmable


       120 Watts
       RF-TLGS-U-3-120-[30/40]-[GR/BZ]-D
       Univ. Voltage - T3 - [3000K or 4000K] CCT - Color [Gray or Bronze] - Dimmable


       150 Watts
       RF-TLGS-U-3-150-[30/40]-[GR/BZ]-D
       Univ. Voltage - T3 - [3000K or 4000K] CCT - Color [Gray or Bronze] - Dimmable


Teslyte RF-TL series mounting plate can be custom-fit specifically to any existing luminaires, please contact Teslyte Sales Representative for more information and part numbers.
