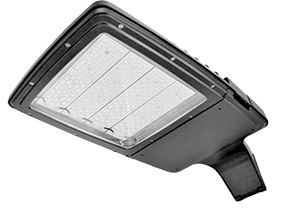

AREA & SITE RETROFIT

Teslyte offers a collection of standard LED retrofit products that are versatile in form and function to adapt to most luminaires of yesterday


APPLICATIONS

  • Ideal for high levels of utility rebate incentives required DLC Premium listing products, California PG&E QPL listed for rebate (http://www.caioulightingqpl.com/)

  • Parking lot and recreational area LED upgrades with the merger of Network Connectivity Teslyte Technika technology – snap into existing fixtures without changing any existing architecture

CUSTOM ENGINEERED SOLUTIONS

  • Custom retrofit integrated with Teslyte Technika technology:

    • 0-10V dimming wireless network interface module

    • 0-10V dimming with wireless remote control

    • 0-10V automatic profile dimming modes

      • Traditional-timer

      • Self Adapt-Midnight timer

      • Self Adapt-Percentage timer

      • Photocell with motion response

      • Photocell with motion response override


TECHNOLOGY INTEGRATION OPTIONS

  • A complete mesh energy-saving wireless system controls up to 1000 nodes of networked lights, control sensors and photocells, 400-meter range with the wireless gateway

  • Reduce energy consumption and maintenance

  • Integrate to program lights on/off/dimming for any specific area tailoring to each event via one central control management station

  • Teslyte Technika can be installed and commissioned in multiple zones, scenes, sensor events and schedules


DLC PREMIUM QUALIFIED PRODUCTS

RF-TL Series (most commonly used model numbers)
40 Watts RF-TLxx-U-3-40W-40-yy-D Light Output: 6138 Im - Efficacy: 148.3 lm/W - Power Factor: 0.88 - CCT: 4085 K - CRI: 77.3 - Total Harmonic Distortion: 14.6 %
60 Watts RF-TLxx-U-3-60W-40-yy-D Light Output: 8833.57 Im - Efficacy: 147.23 lm/W - Power Factor: 0.88 - CCT: 4000 K - CRI: 77 - Total Harmonic Distortion: 14.6 %
80 Watts RF-TLxx-U-3-80W-40-yy-D Light Output: 11514.6 Im - Efficacy: 143.93 lm/W - Power Factor: 0.88 - CCT: 4000 K - CRI: 77 - Total Harmonic Distortion: 14.6 %
90 Watts RF-TLxx-U-3-90W-40-yy-D Light Output: 12855.1 Im - Efficacy: 142.83 lm/W - Power Factor: 0.88 - CCT: 4000 K - CRI: 77 - Total Harmonic Distortion: 14.6 %
100 Watts RF-TLxx-U-3-100-40-yy-D Light Output: 14195.6 Im - Efficacy: 141.96 lm/W - Power Factor: 0.88 - CCT: 4000 K - CRI: 77 - Total Harmonic Distortion: 14.6 %
120 Watts RF-TLxx-[U,4]-3-120-40-yy-D Light Output: 16876.6 Im - Efficacy: 140.64 lm/W - Power Factor: 0.88 - CCT: 4000 K - CRI: 77 - Total Harmonic Distortion: 14.6 %
150 Watts RF-TLxx-U-3-150-40-yy-D Light Output: 20898.1 Im - Efficacy: 139.32 lm/W - Power Factor: 0.88 - CCT: 4000 K - CRI: 77 - Total Harmonic Distortion: 14.6 %
180 Watts RF-TLxx-U-3-180-40-yy-D Light Output: 24920 Im - Efficacy: 137.8 lm/W - Power Factor: 0.996 - CCT: 4057 K - CRI: 77.2 - Total Harmonic Distortion: 4.98 %

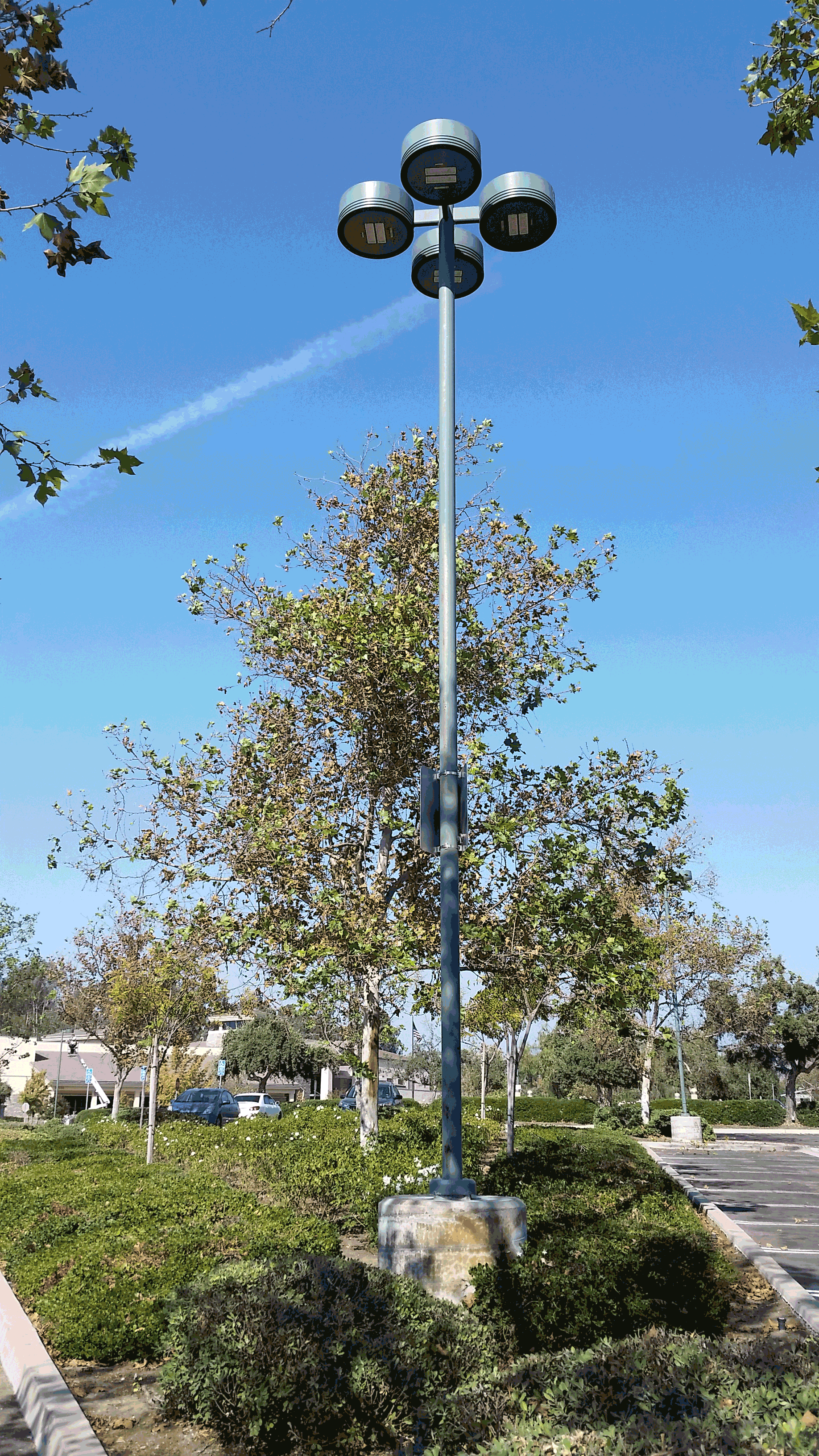

PROJECT SPOTLIGHT


City halls & Community Centers

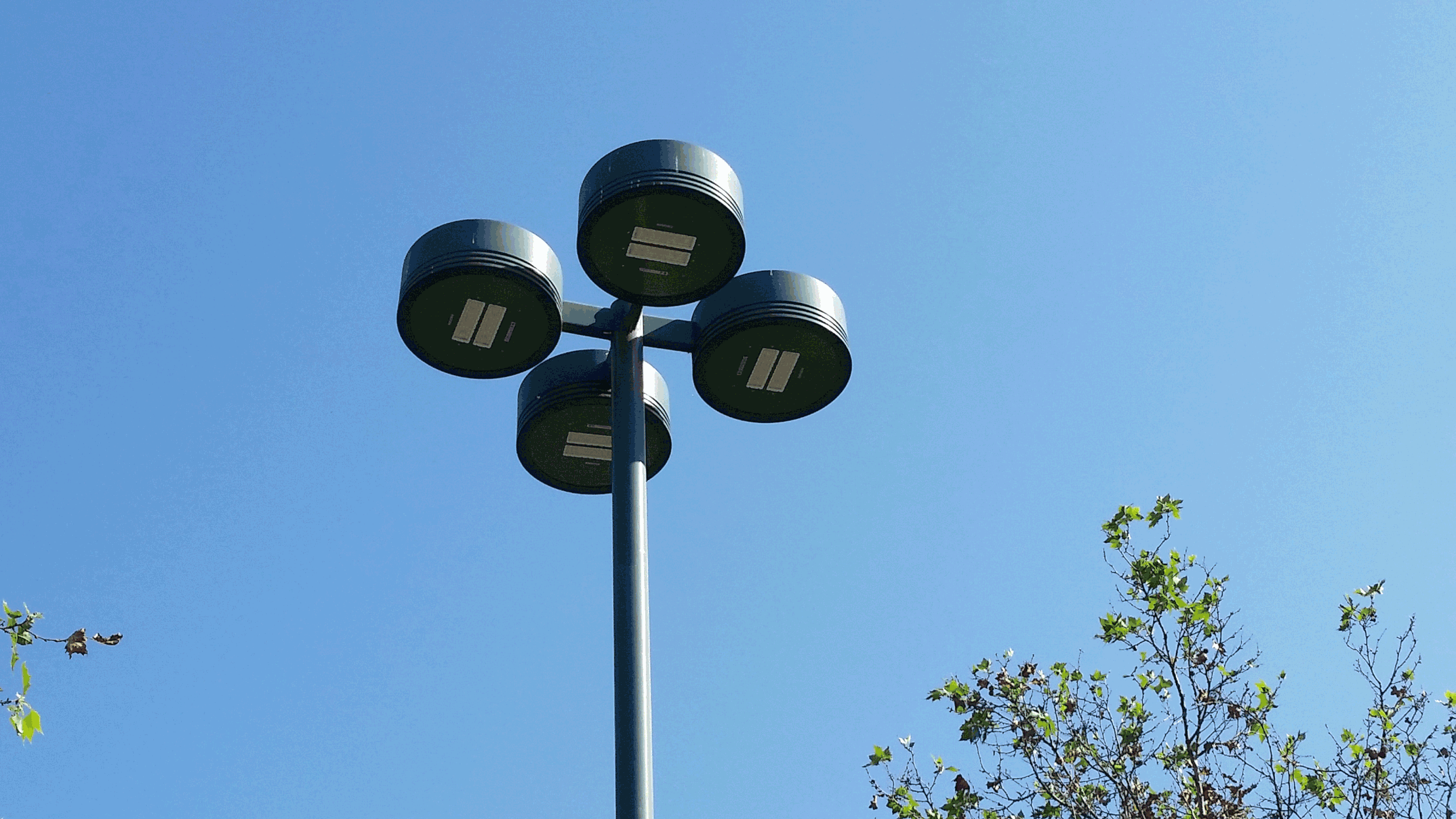

  • Laguna Niguel City Hall - Laguna Niguel, CA.

  • Laguna Hills Community Center - Laguna Hills, CA.

City Parks

  • Gilroy Gardens Family Theme Park - City of Gilroy, CA.

  • Barney Schwartz Park - Paso Robles, CA.

  • Morro Bay State Park - Morro Bay, CA.

Universities & School

  • CAL State Northridge University – Northridge, CA.

  • Mission Elementary School - Redlands, CA.

Street and Housing

  • City of Dinuba - Dinuba, CA.

Airport

  • Phoenix Sky Harbor International Airport - Phoenix, AZ.
