WESTMINSTER
The Westminster family is a comprehensive collection of highly advanced LED luminaires covering the entire lighting spectrum. Offering the ultimate in uniformity and performance, the Westminster product portfolio includes pole mounts, bollards and wall mounts that are ideal for use in community centers, theaters, retail and commercial environments.
TECHNICAL OVERVIEW
PEDESTRIAN COLUMN LIGHT CL-WM Series
Wattage: up to 60W
Voltage: 120/277V
CCT: 2700 - 5000K
BOLLARD BL-WM Series
Wattage: up to 30W
Voltage: 120/277V
CCT: 2700 - 5000K
Emergency battery backup 90 minutes
Occupancy sensor program using wireless handheld configuration tool
WALL MOUNT WC-WM Series
Wattage: up to 30W
Voltage: 120/277V
CCT: 2700 - 5000K
WC-WM Series
Specification
IES
BL-WM Series
Specification
IES
CL-WM Series
Specification
IES
TECHNOLOGY INTEGRATION OPTIONS
Teslyte Avantec: Integrating with wireless intelligent control system for fast, ladder-free setup and maintenance
ADAPTIVE LUMINAIRES
Possible modification: cylindrical form
Contact Teslyte sales representative for more details (reference CL-CF series)
PROJECT SPOTLIGHT

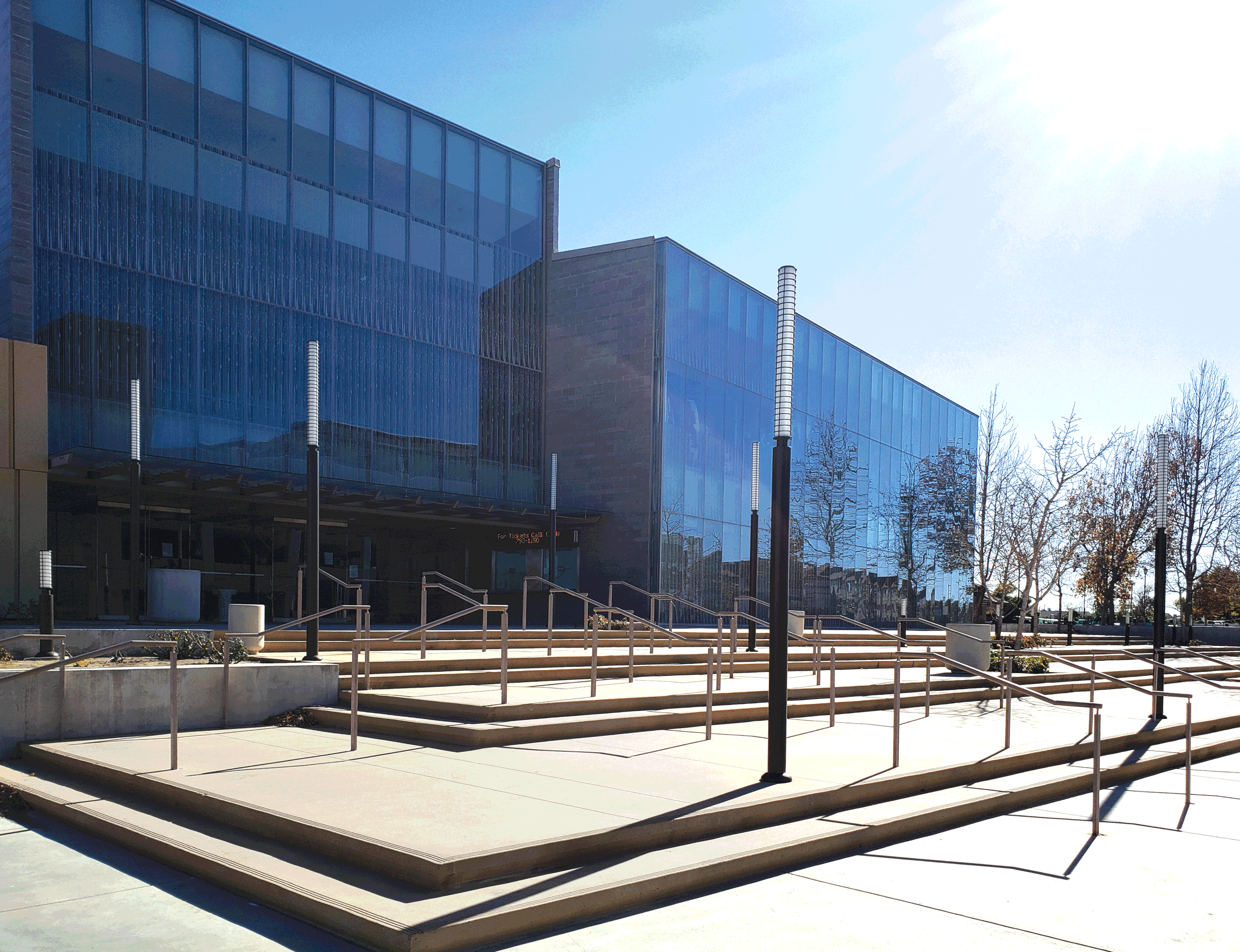

The City of Westminster, California sought a local manufacturer to assist with a project to convert bollards and traditional lantern post tops to LED. It was important to maintain the design of the fixtures, so retrofit was the only viable option. The specification called for the bollards and column lights to utilize the existing mounting base. Teslyte was able to assist and comply with the tight deadline as the city’s budget was closing. Teslyte’s engineers manufactured a custom plate matching the existing base plate to fit with the current anchor bolts on the job site.
During the second phase, Teslyte successfully retrofitted the traditional antique lantern fixtures and replaced the 70W high-pressure sodium with high-pressure LED. Teslyte provided two mock-up samples for the comparison with the competition’s 70W retrofit kits.
Teslyte’s kit proved superior with better visual appearance and performance at only 40W. Teslyte managed all UL listings and delivered the product with the standard 5-year warranty.
The Solution: Teslyte’s field engineers are always on the front line of the business, involved in all phases of the project, from acquiring the first data needed for design to listening to the needs of the customer. Within six-weeks, Teslyte designed and delivered a bollard and pole mount family that not only was uniform in appearance but also reduced the installation time by matching the mounting base and overall cost of the project.
The Results: The City of Westminster was pleased with Teslyte’s design and performance and subsequently requested Teslyte to retrofit its parking lot with the goal of 50-55% reduction in energy usage compared to the HPS.
