led post top Retrofit solutions
RF-SZ Series
APPLICATIONS
Ideal for a dedicated hard-wire requirement to insure the integrity of the lighting retrofit and the proper lamp is used in the future if maintenance is required
Retrofit fixture styles
Holophane Washington Postlite Acorn
Holophane Granville Acorn
Holophane Esplanade Teardrop
King Luminaire Washington Acorn
Local streets, alleys, or pedestrian walkways – replace HID post top luminaires without compromising the aesthetics of the original design
STANDARD PART NUMBERS
| 27 Watts | RF-SZFG-U-S-27W-[30/40]-WH-ND | Univ. Voltage - Symmetrical - [3000K or 4000K] CCT |
| 36 Watts | RF-SZFG-U-S-36W-[30/40]-WH-ND | Univ. Voltage - Symmetrical - [3000K or 4000K] CCT |
| 45 Watts | RF-SZFG-U-S-45W-[30/40]-WH-ND | Univ. Voltage - Symmetrical - [3000K or 4000K] CCT |
| 54 Watts | RF-SZFG-U-S-54W-[30/40]-WH-ND | Univ. Voltage - Symmetrical - [3000K or 4000K] CCT |
DOWNLOADS
CERTIFICATIONS & COMPLIANCE
led post top Retrofit solutions
RF-TD Series
CUSTOMIZED ENGINEERED SOLUTIONS
Custom retrofit with wireless controls or programmable driver integration or photocell
Custom-fit plate for any existing luminaires
Retrofit fixture styles
Holophane Arlington
STANDARD PART NUMBERS
| 40 Watts | RF-TD12-U-[3/5]-40W-40-GR-D | 12.2" Diameter Univ. Voltage - [T3 or T5] - 4000K CCT - Dimmable |
| 50 Watts | RF-TD12-U-[3/5]-50W-40-GR-D | 12.2" Diameter Univ. Voltage - [T3 or T5] - 4000K CCT - Dimmable |
| 60 Watts | RF-TD12-U-[3/5]-60W-40-GR-D | 12.2" Diameter Univ. Voltage - [T3 or T5] - 4000K CCT - Dimmable |
| 80 Watts | RF-TD12-U-[3/5]-80W-40-GR-D | 12.2" Diameter Univ. Voltage - [T3 or T5] - 4000K CCT - Dimmable |
Teslyte RF-TD series mounting plate can be custom-fit specifically to any existing luminaires, please contact Teslyte Sales Representative for more information and part numbers.
DOWNLOADS
CERTIFICATIONS & COMPLIANCE

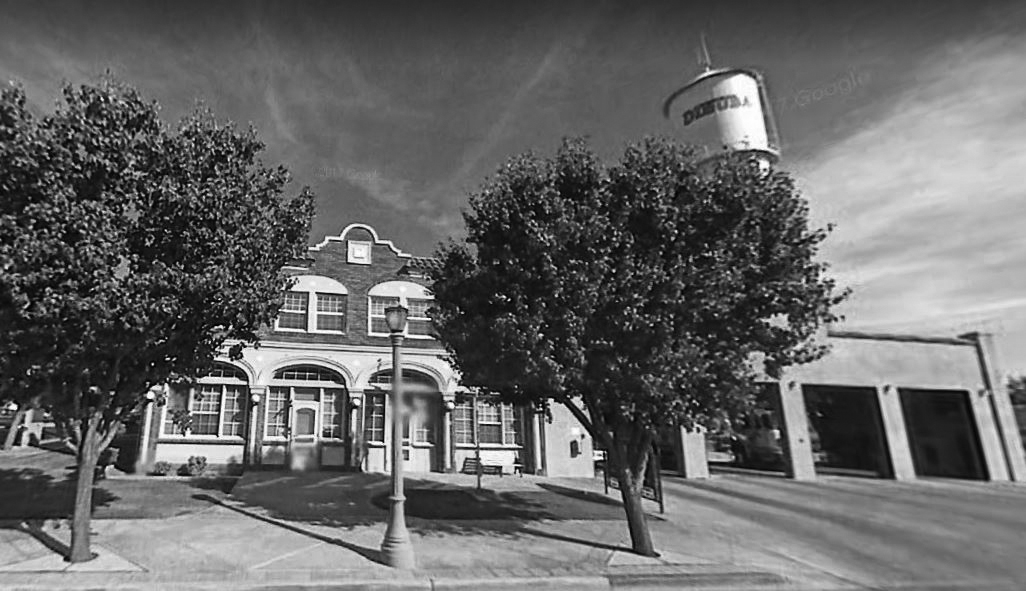

SAMPLE PROJECT
City of Dinuba, CA.
