WESTMINSTER

The Westminster family is a comprehensive collection of highly advanced LED luminaires covering the entire lighting spectrum. Offering the ultimate in uniformity and performance, the Westminster product portfolio includes pole mounts, bollards and wall mounts that are ideal for use in community centers, theaters, retail and commercial environments.

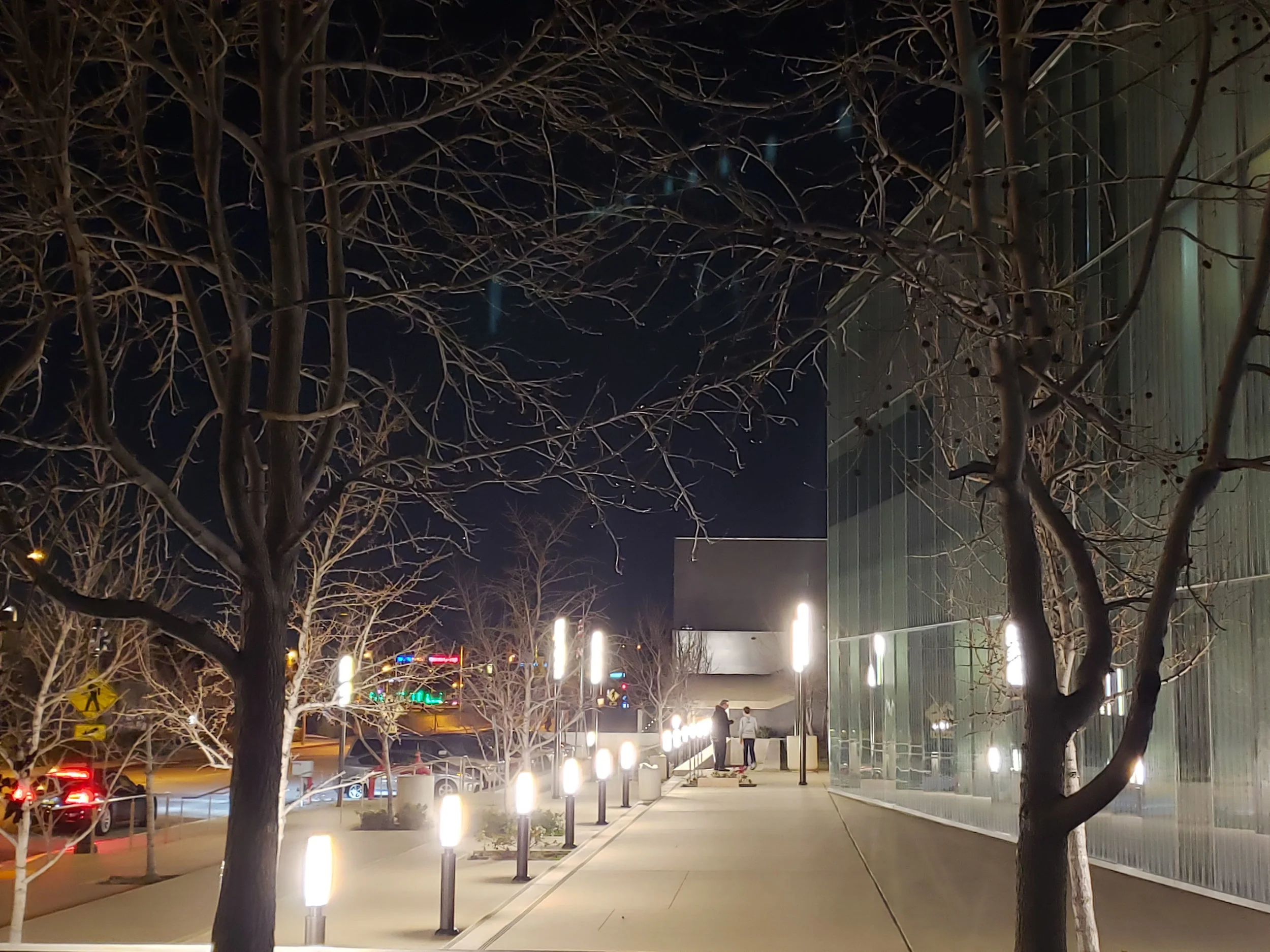

Rose center night.jpg

TECHNICAL OVERVIEW

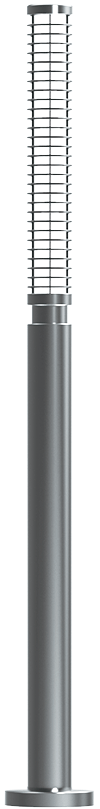

PEDESTRIAN COLUMN LIGHT CL-WM Series

Wattage: up to 60W

Voltage: 120/277V

CCT: 2700 - 5000K



WALL MOUNT WC-WM Series

Wattage: up to 30W

Voltage: 120/277V

CCT: 2700 - 5000K



BOLLARD BL-WM Series

Wattage: up to 30W

Voltage: 120/277V

CCT: 2700 - 5000K

Emergency battery backup 90 minutes

Occupancy sensor program using wireless handheld configuration tool

WC-WM Series  Specification  IES

WC-WM Series

Specification

IES


BL-WM Series   Specification   IES

BL-WM Series

Specification

IES

CL-WM Series   Specification   IES

CL-WM Series

Specification

IES


TECHNOLOGY INTEGRATION OPTIONS

Teslyte Avantec: Integrating with wireless intelligent control system for fast, ladder-free setup and maintenance


ADAPTIVE LUMINAIRES

Possible modification: cylindrical form



Rose center night.jpg

Contact Teslyte sales representative for more details (reference CL-CF series)


PROJECT SPOTLIGHT


The City of Westminster, California sought a local manufacturer to assist with a project to convert bollards and traditional lantern post tops to LED. It was important to maintain the design of the fixtures, so retrofit was the only viable option. The specification called for the bollards and column lights to utilize the existing mounting base. Teslyte was able to assist and comply with the tight deadline as the city’s budget was closing. Teslyte’s engineers manufactured a custom plate matching the existing base plate to fit with the current anchor bolts on the job site.

During the second phase, Teslyte successfully retrofitted the traditional antique lantern fixtures and replaced the 70W high-pressure sodium with high-pressure LED. Teslyte provided two mock-up samples for the comparison with the competition’s 70W retrofit kits.

Teslyte’s kit proved superior with better visual appearance and performance at only 40W. Teslyte managed all UL listings and delivered the product with the standard 5-year warranty.

The Solution: Teslyte’s field engineers are always on the front line of the business, involved in all phases of the project, from acquiring the first data needed for design to listening to the needs of the customer. Within six-weeks, Teslyte designed and delivered a bollard and pole mount family that not only was uniform in appearance but also reduced the installation time by matching the mounting base and overall cost of the project.

The Results: The City of Westminster was pleased with Teslyte’s design and performance and subsequently requested Teslyte to retrofit its parking lot with the goal of 50-55% reduction in energy usage compared to the HPS.
