24V DC LIGHTING SYSTEM
Teslyte's 24V lighting fixture utilizes DC-compatible technologies, enabling it to be powered directly by on-site renewable energy systems in the DC voltage form, rather than converting it first to alternating current (AC) for distribution to loads.
Direct-DC power system benefits:
Whole-building efficiency gains from Direct DC by eliminating the DC-to-AC and AC-to-DC conversions losses of drivers.
DC powering provides non-energy benefits like power quality, resiliency and safety (low voltage power touch-safe, eliminating the risk of shock).
Enable smaller profile fixtures and allow SMART wireless connectivity and control.
Direct-DC Power System Compatibility
TECHNICAL OVERVIEW
RECESSED DOWN LIGHT TL-RL Series
Wattage: 10W, 15W
Voltage: 24V DC
CCT: 2700 - 4000K
Lens: 45, 60, 70 degree cut-off, wall-wash, or diffused
CYLINDRICAL TL-CYL Series
Wattage: 10W or 15W
Voltage: 24V DC
CCT: 2700 - 4000K
Lens: 45, 60, 70 degree cut-off, wall-wash, or diffused
TECHNICAL OVERVIEW
TRACK LIGHTING TR-24 Series
Wattage: 10W or 15W
Voltage: 24V DC
CCT: Choice of multiple CCT options
Optic with 120, 240, 360 beam angles – easy, field changeable
Size: 1.97”, 2.76”, 3.54” and 4.33” diameter
Mounting: 24VDC track 2, 4, 6, 8-foot sizes or field cut to accommodate custom lengths, choice of multiple track feed and connector options
24V RLM FAMILY
24V WALL MOUNT FAMILY
TECHNICAL OVERVIEW

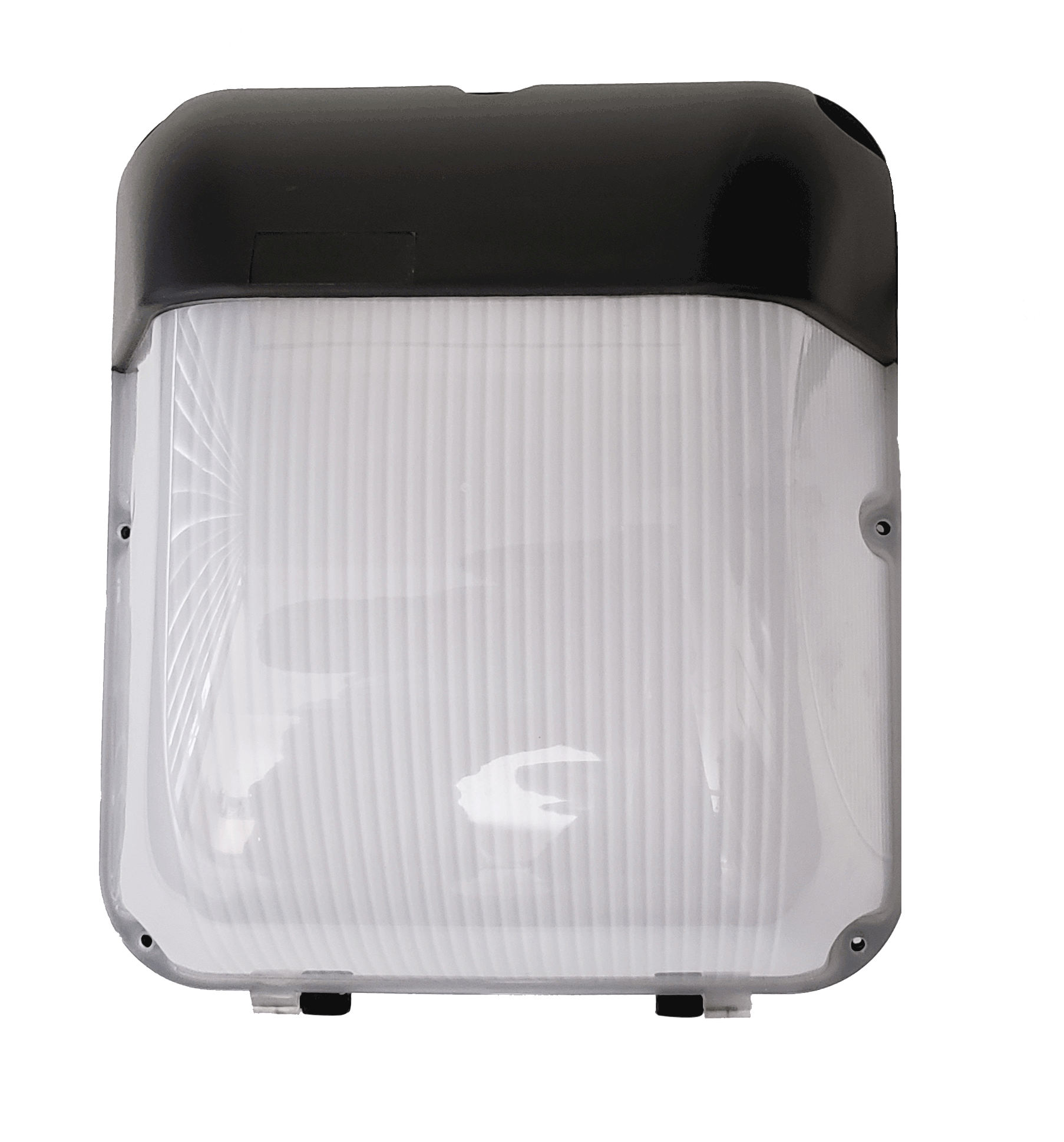

WALL MOUNT WP-10 Series
Wattage: upto 90W
Voltage: 24V DC
CCT: 2700 - 4000K
